It is now possible to connect a N2K system (¹) at iNavX, on iPhone or iPad.
Indeed, Actisense company, well known for its NMEA interfaces (multiplexers and gateways), designed the NGW-1 ISO, an NMEA 2000 gateway converter to NMEA 0183 and vice versa. Connected to a Miniplex-2Wi by ShipModul ou un WLN10 device, the data thus converted will be sent via WiFi to iNavX.
A NMEA system 2000 system generally has GPS receiver and other instruments.

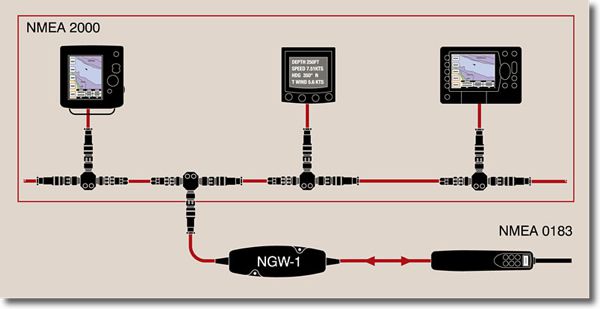

NMEA 2000 standard scheme

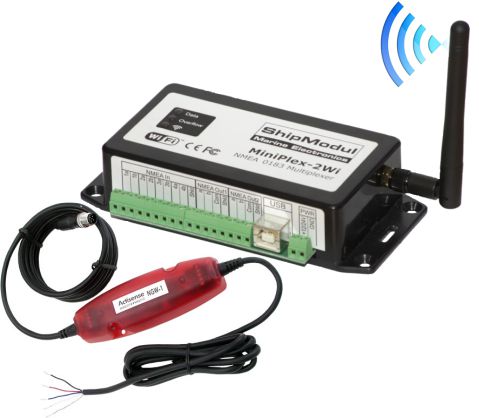

Connect an Actisense NGW-1 ISO to a Miniplex-2Wi :
- White wire from NGW-1 to IN1 connector A, IN2 or IN3 of the Miniplex
- Blue wire from NGW-1 to IN1 connector B, IN2 or IN3 of the Miniplex
If you use iNavX with an iPad, and you have a NMEA autopilot 2000, you can return NMEA data 0183 towards this one :
- Red wire from NGW-1 to connector A of OUT1 of Miniplex
- Black wire from NGW-1 to connector B of OUT1 of Miniplex
Connect the NGW-1 (ISO) to backbone NMEA 2000. Then link iNavX to the Miniplex-2Wi (see ²).

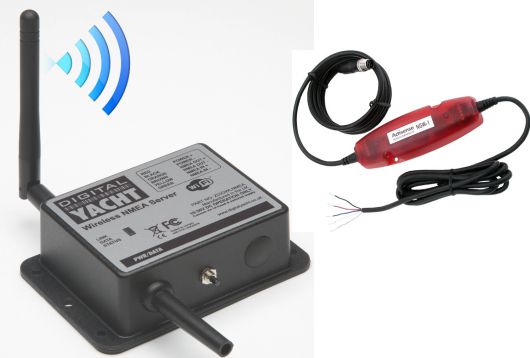

Connect an Actisense NGW-1 ISO to a WLN10 :
- White wire from NGW-1 to NMEA In+ connector on WLN10
- Blue wire from NGW-1 to NMEA In- you WLN10
Connect the NGW-1 (ISO) to backbone NMEA 2000. Then link iNavX to the WLN10 (see ³)
—
(¹) N2K : US abbreviation of NMEA 2000 (N 2 kilos).
(²) Miniplex-2Wi, the new WiFi multiplexer for iPad and iPhone
(³) See iNavX Help
